I took one of those Sony Ericsson touchscreens I got from DealExtreme, along with a SparkFun Nintendo DS touchscreen breakout board (it works with this touchscreen too), and put it on my KS0108 MONOCHRON GLCD screen after a lot of messing around with wires. The touchscreen is actually a really good size for this screen, it’s just slightly larger but it’s a very good fit. I knew it was a good idea to buy two of them though, because I ended up breaking one of them (the wires are very fragile and it got torn off), which is why I decided to use twenty layers of tape to protect the wires on the second one. The only downside to using this touchscreen with the GLCD is that now I only have one analog input pin left.

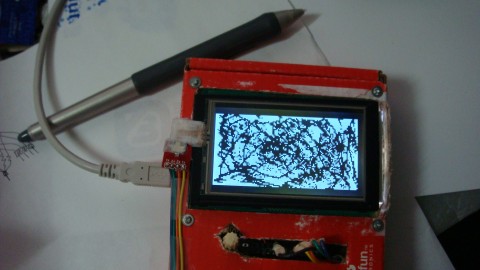

GLCD touchscreen 1

Random scribbles on the touchscreen GLCD

Walfas!Ika Musume!Mils!Marisa!BIRD!!Tree!!Another tree!

I based the code on this, which is also a useful guide if you want to do something similar with a touchscreen.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
// GLCD library can be found here:
// http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1279128237/0
#include <glcd.h>

// A1 corresponds to analog pin #1, etc
// Same as pin number 15 (that is, add 14 to it)
#define X1_PIN A4
#define X2_PIN A2
#define Y1_PIN A1
#define Y2_PIN A3

#define BOX_SIZE 8
#define DELAY_TIME 3

int prevPos[] = {0,0}; // Previous position pressed
int pos[] = {0,0};  // Current position pressed

// Change these values to correspond to your touchscreen;
// X and Y values from 0 to 1023 come from the analogRead()
// in the getTCoords() function
int topLeftXY[] = {830,715};
int bottomRightXY[] = {55,165};

void setup(){
  GLCD.Init(INVERTED);
  GLCD.ClearScreen();
  drawQuitBox();
}

void loop(){
  if ( getTCoords() ) {
    // If the touched position is not 0,0, draw a dot
    GLCD.SetDot(prevPos[0], prevPos[1], BLACK);
    delay(DELAY_TIME);
  }
  if ( inQuitBox() ) {
    if ( justPressed() )
      // Screen is cleared if the quit box is 'clicked'
      GLCD.ClearScreen();
    drawQuitBox();
  }
}

boolean justPressed() {
  // Checks to see the input is a "click"; that is,
  // right before, there was nothing touching the screen
  if (prevPos[0] == 0 && prevPos[1] == 0 && pos[0] != 0 && pos[1] != 0) {
    return true;
  }
  else
    return false;
}

void drawQuitBox() {
  // Box at the top right corner with an X in it
  GLCD.FillRect(GLCD.Right-BOX_SIZE, 0, BOX_SIZE, BOX_SIZE-1, WHITE);
  GLCD.DrawRect(GLCD.Right-BOX_SIZE, 0, BOX_SIZE, BOX_SIZE);
  GLCD.DrawLine(GLCD.Right-BOX_SIZE, 0, GLCD.Right, BOX_SIZE);
  GLCD.DrawLine(GLCD.Right, 0, GLCD.Right-BOX_SIZE, BOX_SIZE);
}

boolean inQuitBox() {
  // Returns true if the current touched position
  // is in the quit box
  if ( (GLCD.Right-BOX_SIZE-1 <= pos[0]) && (pos[1] <= BOX_SIZE+1) )
    return true;
  else
    return false;
}

boolean getTCoords() {
  // Gets the touched position on the screen
  pinMode(X1_PIN,OUTPUT);
  pinMode(X2_PIN,OUTPUT);
  digitalWrite(X1_PIN,LOW);
  digitalWrite(X2_PIN,HIGH);

  digitalWrite(Y1_PIN,LOW);
  digitalWrite(Y2_PIN,LOW);

  pinMode(Y1_PIN,INPUT);
  pinMode(Y2_PIN,INPUT);

  prevPos[0] = pos[0];
  pos[0] = analogRead(Y1_PIN-14); // Subtract 14 to get the analog pin number

  pinMode(Y1_PIN,OUTPUT);
  pinMode(Y2_PIN,OUTPUT);
  digitalWrite(Y1_PIN,LOW);
  digitalWrite(Y2_PIN,HIGH);

  digitalWrite(X1_PIN,LOW);
  digitalWrite(X2_PIN,LOW);

  pinMode(X1_PIN,INPUT);
  pinMode(X2_PIN,INPUT);

  prevPos[1] = pos[1];
  pos[1] = analogRead(X1_PIN - 14); // Subtract 14 to get the analog pin number

  // Non-zero values get converted to a point on the screen
  if (pos[0] != 0 && pos[1] != 0) {
    pos[0] = (int) map(pos[0], topLeftXY[0], bottomRightXY[0], 0, GLCD.Width);
    pos[1] = (int) map(pos[1], topLeftXY[1], bottomRightXY[1], 0, GLCD.Height);
    return true;
  }
  else {
    return false;
  }
}
